Injector Cleaning & Flow Testing Service

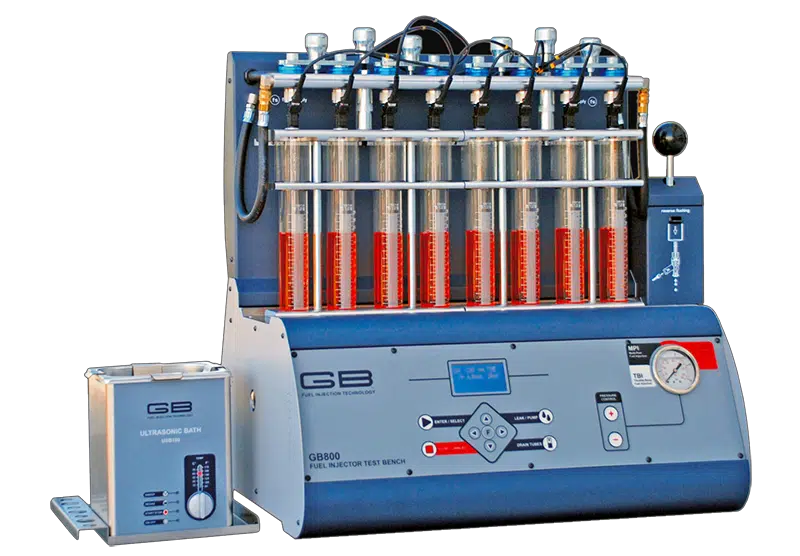

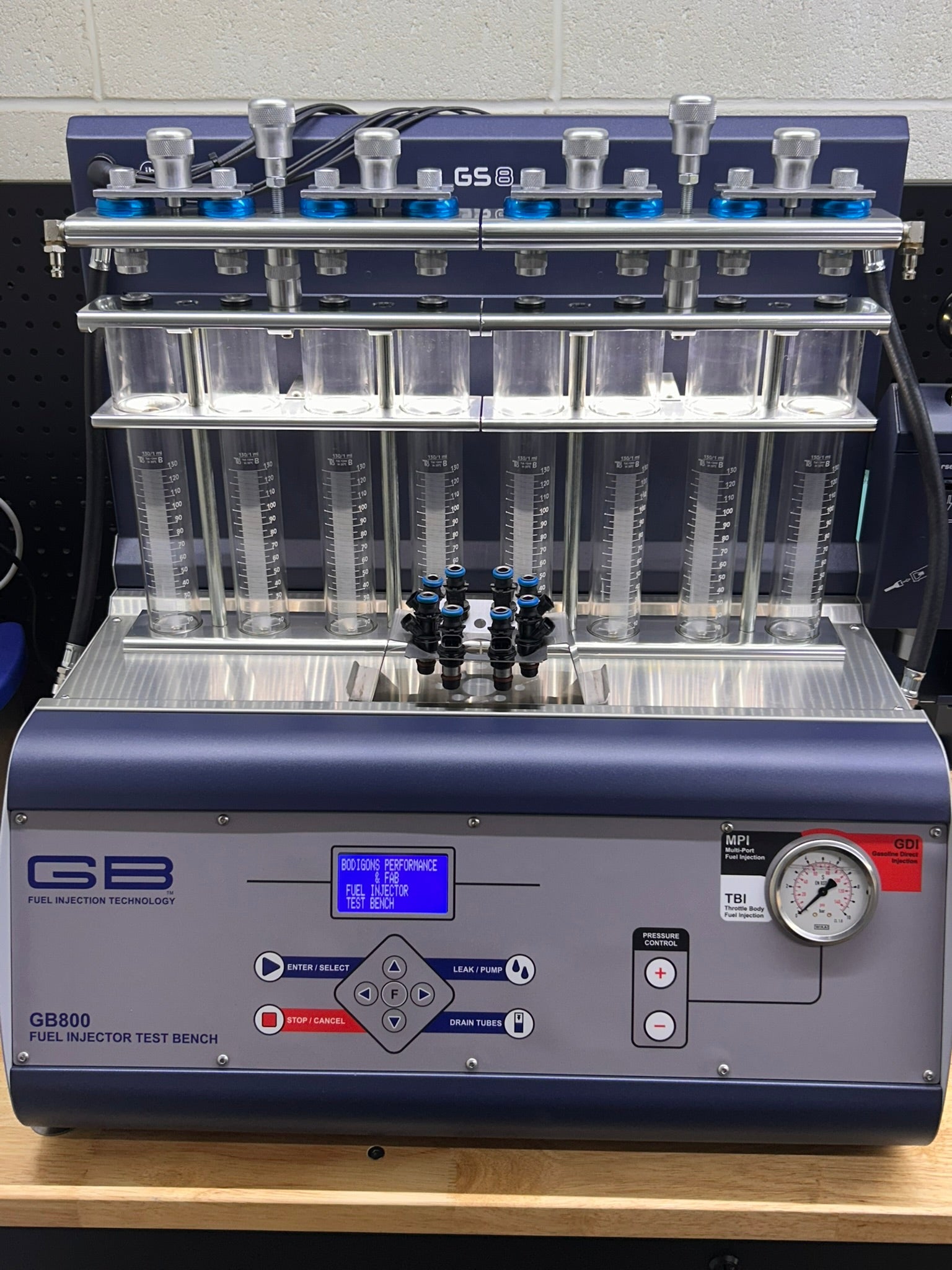

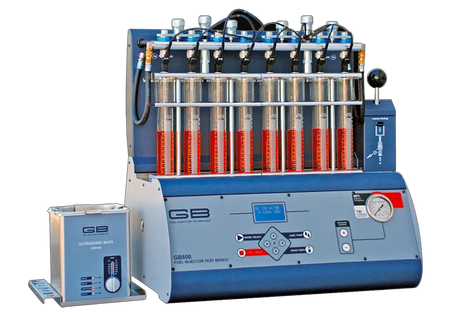

DRP-DAM Racing Products is excited to offer our injector cleaning and flow testing services using our GB Remanufacturing Inc, Gasoline, Multi-Port MPFI GB 800 machine. We can provide optimal results through running various tests to ensure your injectors are functioning properly.

Injectors we can service: most top feed and side feed gasoline MPFI and throttle body injectors. We cannot service any diesel injectors.

What's Included:

• Coil Test
• Bench Test (Static & Dynamic Flows)
• Ultrasonic Cleaning
• Bench Re-test
• O-rings and filters replaced as needed, *optional to replace all for piece of mind for $4 per injector
• If you have Billet Atomizer Injectors and would like them taken apart, new coil o-rings, new stainless filter basket and internal parts hypersonically cleaned it is a $6 charge per injector.


Our Process:

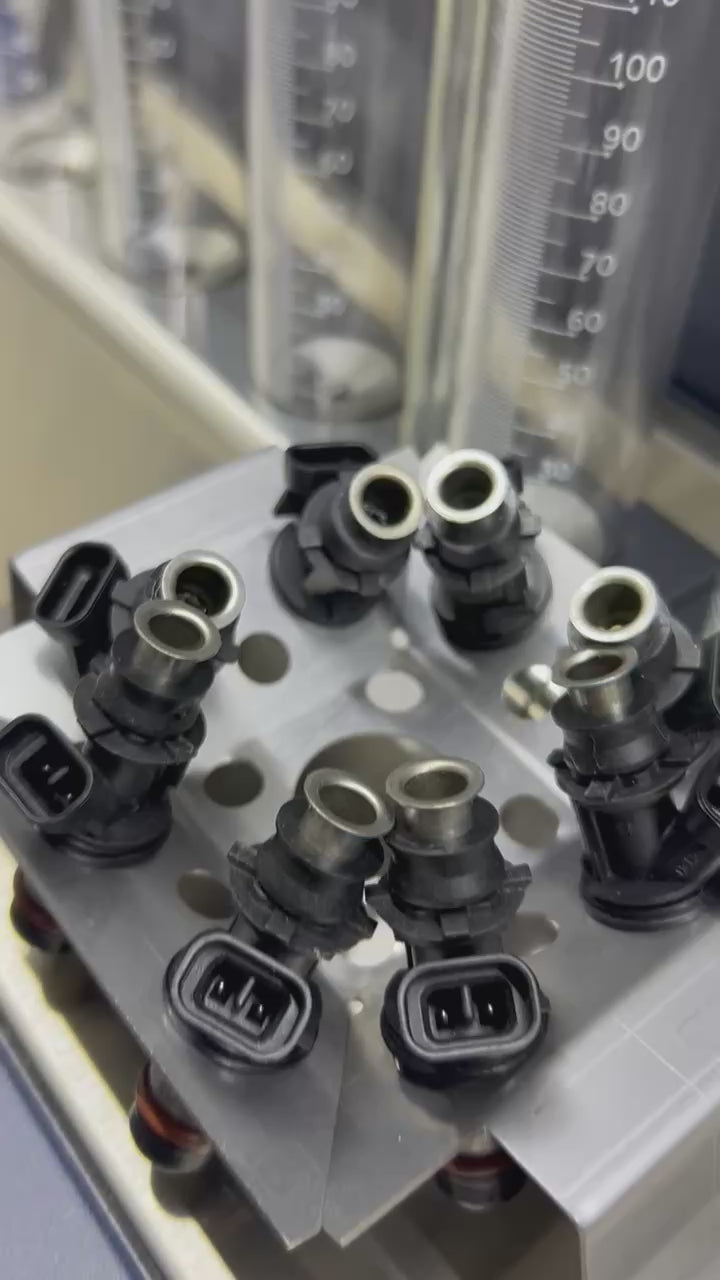

1. Numbering & Labeling: All injectors are numbered for reference (we strongly recommend you label each according to the cylinder they came out of in your engine)
2. Coil Resistance Test: Ensures there are no electrical issues prior to proceeding (open, shorted, etc.)
3. Leak Test: Ensures the injector is not leaking from the body or pintle (performed without the injector being pulsed)
4. Spray Pattern Inspection: Looking for consistency among all injectors
5. Static & Dynamic Flow Testing: Determines all components are functioning properly. Testing is conducted at three customizable setpoints for both RPM and pulse width. For instance, we can test at a low range (e.g., 1,500 RPM at 1.5ms) and a high range (e.g., 8,000 RPM at 6ms), as well as wide open (non-pulsed).
6. Ultrasonic Cleaning: Heated ultrasonic cleaner removes any varnish and debris
7. Backflushing: Removes any remaining debris
8. Re-testing: All tests are performed a second time with corresponding parameters recorded to ensure everything is within spec

Additional Services:

Complete O-Ring & Filter Replacement: $4 per injector (if you prefer all O-rings & filters replaced rather than just as needed)

*We use a specially formulated o-ring that is compatible with various fuel types: regular gasoline, E85, E100, & methanol

Billet Atomizer Injectors: If you have billet Atomizer Injectors and would like them taken apart, new coil o-rings, new stainless filter basket and internal parts hypersonically cleaned it is a $6 charge per injector.

Important Information:

Symptoms of dirty or malfunctioning injectors:

• Hard Starting
• Rough Idle
• Sooty Exhaust
• Lack of Performance
• Poor Part Throttle Acceleration

Disclaimers:

*Injector cleaning should be part of your preventative maintenance, not an afterthought or reactive to issues.

*The cleaning process removes essential lubricants, making them vulnerable if left uninstalled and unused. To prevent injectors from sticking open or closed, install them immediately upon return.

Minimum quantity for cleaning services: 2 injectors

After placing your order:

Ship your injectors to:
DRP
3201 W. U.S. Hwy 224
Decatur, IN 46733

If you have questions, email us at info@damracingproducts.com
